1000BASE-LX/LH SFP transceiver, MMF/SMF,1310nm
1000BASE-LX/LH SFP transceiver, MMF/SMF,1310nm

Enterprise Fiber Module Item Code: GLC-LH-SMD=

UOM : Unit
Available on backorder

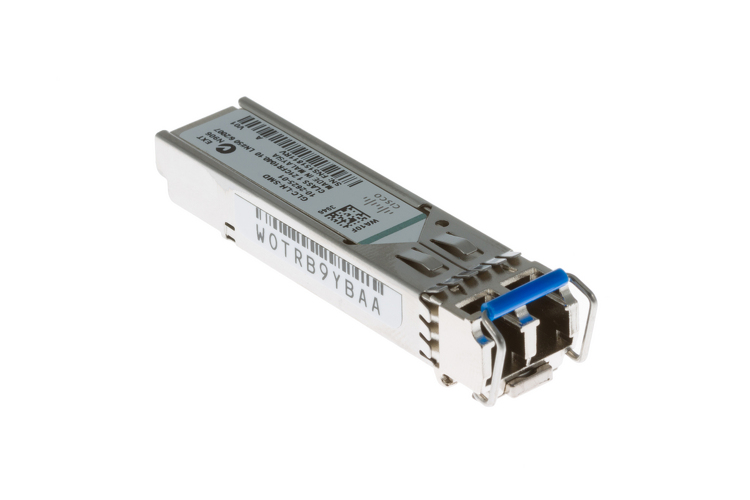

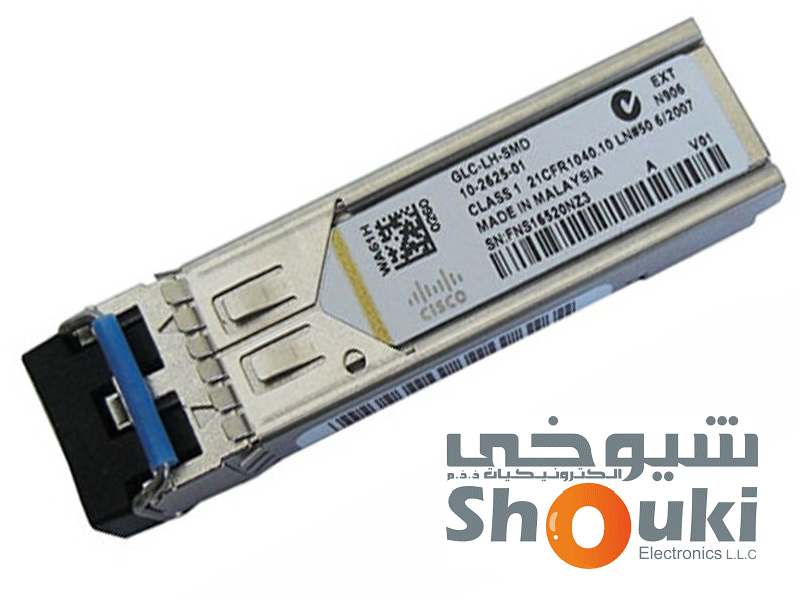

Cisco SFP Gigabit Ethernet Transceiver Module (GLC-LH-SMD)

Product Description

Let’s now a bit more about Cisco SFP Gigabit Ethernet Transceiver which can be known by its part number, GLC-LH-SMD which you can have in Dubai at high quality. This Cisco device is provided by Shouki Electronics. First, we should know what is an SFP port? What is an SFP transceiver?

An SFP port is a pitch on a network device in which small form-factor pluggable transceivers are placed. After knowing this we can say what is an SFP transceiver. Of course, it can be called an SFP module as well. SFP transceiver is a hot-swappable metal part that allows you to transfer data when it is connected to another device by a cable. A transceiver like Cisco SFP Gigabit Ethernet Transceiver is a device that includes what both transmitter and receiver do. On the other hand, to transmit signals, network transceivers are required in specialized networks such as LANs.

Product Characteristics

This product is an SFP. It has a Gigabit Ethernet port. Also, it would slot and enable a single-mode or multimode optical fiber port to associate with the network. This model is a normal single-mode fiber-optic link. The product can extend up to 10 km. Also, it can extend across all multimode fibers up to 550 m, respectively, If the transmitter is used on multimode fiber.

GLC-LH-SMD is compatible with Cisco networking equipment. So we can list it as Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs), and Media Converters.

Purchasing GLC-LH-SMD in Dubai from us, the Cisco wholesaler can be a good choice for you.

Product Advantages

Part NumberGLC-LH-SMD Fiber Operating ModeHalf/Full-Duplex


Wavelength 1310 nm Data Rate1.25Gb/s


Max Distance 10 km Fiber TypeSMF


Transmitter Power-9 ~ -3 dBm Optical ComponentsFP/PIN


Receiver Sensitivity< -22 dBm Extinction ratio> 9 dB


Connector1 – Fiber Optic LC Duplex Female Receiver Overload> -3 dBm


EnvironmentOperating: 0°C to 70°CStorage: -40°C to 85°C Digital Diagnostic MonitoringYes

Compliance IEC/EN 61000-4-2,IEC-60825FDA 21CFR 1040.10 and 1040.11RoHS Weight0.025 kg
Compatible productsCatalyst Express 500/520Cisco ME 3400/3600X/3800X/4900/6500Catalyst 2940/2950/2960/2960-S/2960-C/2970/2975Catalyst 3560/3560-E/3560-X/3560-CFiber Optic ConnectorLC, PC

You may use this receiver in conjunction with other networking equipment. Correspondingly you can construct for your organization a LAN fiber backbone. But you would need to have experience in fiber-optic networks. Or maybe can hire a consultancy. Fiber cable is larger than regular cotton cabling in terms of bandwidth.

Other characteristics of Products

Cisco will prepare a guarantee for this product. At Shouki Electronics, the Cisco partner, we generally give clients high disposition items. Moreover, provide the best quality. The Cisco product can be bought from our company, a reliable brand in terms of IP-Phone sales in Dubai and the UAE. Also, check other Casio’s products like IP-Phone. So don’t miss them and take a look at them in the shop.
