SMB-Fiber-Module Item Code: SFP-H10GB-CU1M=

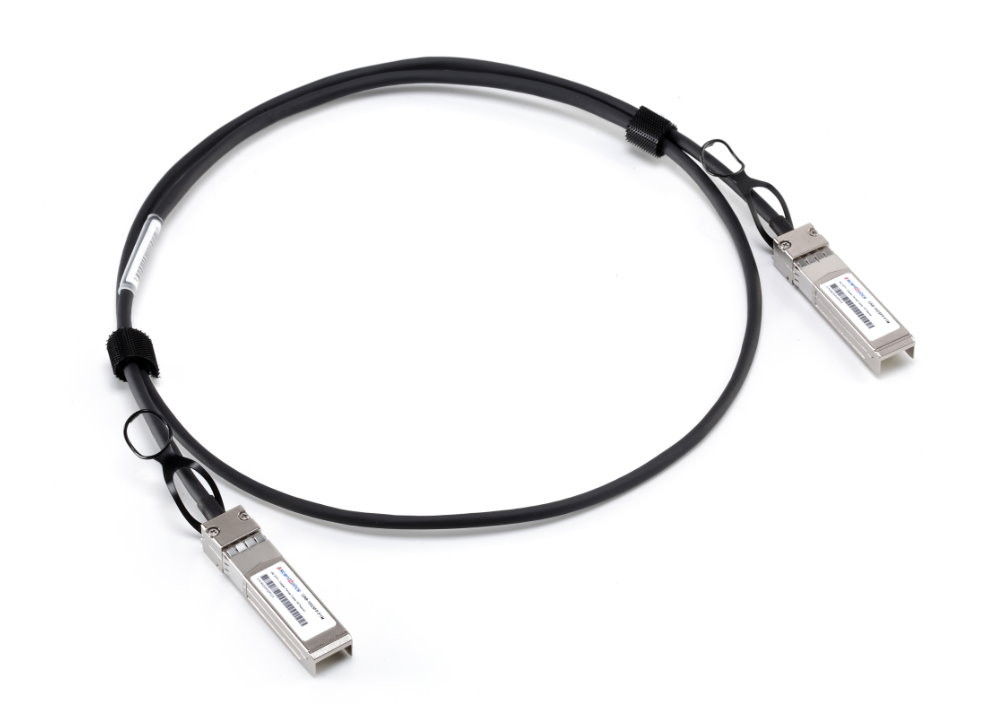

Cisco SFP-H10GB-CU1M Compatible 10G SFP+ 1m Passive Direct Attach Copper Twinax Cable
Product Description
This product is Cisco SFP-H10GB-CU1M Compatible 10G SFP+ 1m Passive Direct Attach Copper Twinax Cable. Also, you can find it by its part number, SFP-H10GB-CU1M in Dubai at high quality. Shouki Electronics is providing this Cisco device.
This Cisco cable is the SFP-H10GB-CU3M. It offers high performance and cost-effectiveness. This cable is also called copper cable or Twinax cable. In addition to 10G Ethernet, eight-gigabit fiber channels, and ten-gigabit fiber channels over Ethernet, the Cisco SFP-H10GB-CU3M is designed to support the bandwidth requirements of these protocols.
Specification
| Part Number | SFP-H10GB-CU1M | Protocols | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel | ||||
| Form Factor | SFP+ DAC Cable | Data Rate | 10.5Gb/s | ||||
| Passive or actively equalized | Passive | Supply Voltage | 3.3V | ||||
| Cable Length | 1 m | Cable impedance | 100 Ω | ||||
| Cable Type | Twinax | Wire Gauge | 30AWG | ||||
| Minimum cable bend radius | 25 mm | Cable Jacket Type | PVC | ||||
| Connector | SFP+/SFP+ | Digital Diagnostic Monitoring | N/A | ||||
| Environment | Operating: 0°C to 70°C | Storage: -40°C to 85°C | Weight | 0.1 kg | |||
| Application | Storage Area Networks( SAN)Network Attached Storage | The switched fabric I/O | High-density connections between networking equipment | Datacenter cabling infrastructure | Compliance | SFF-8472,SFF-8431IEC/EN 61000-4-2 | MIL-STD -883E, RoHS |
Other characteristics of Products
Cisco will prepare a guarantee for this product. Our goal at Shouki Electronics is to provide clients with high-quality items. In addition, we want to offer high-quality services. Our company provides IP-Phone sales in Dubai and the Middle East, so Casio products can be purchased from us. Check out Casio’s other products as well. So don’t miss them and take a look at them in the shop.
